TYSUU4703 Rotary replacement seal pump repair mechanical seal

Operational restrictions

Sealing chamber pressure: ≤0Mpa~1.2Mpa
Sealing room temperature: -20~80°C (-30~200°C)
Linear speed: ≤12m/sec
Medium: water, oil, sewage with PH value of 6.5-8
Usage: clean water pump, sewage pump, submersible pump, chemical pump and other equipment, used to transport oil,Water and weakly corrosive solutions.
  • Double Face Mechanical Seals
  • Double Face
  • Single Spring
  • Unbalanced Seal
  • Rubber Bellows
  • Stationary Ring(Ceramic/SiC/TC)
  • Rotary Ring(Carbon/SiC)
  • Secondary Seal(NBRNITON)
  • Retainer(SUS304/SUS316)
  • Spring(SUS304/SUS316)
  • Spring Holder(SUS304/SUS316)

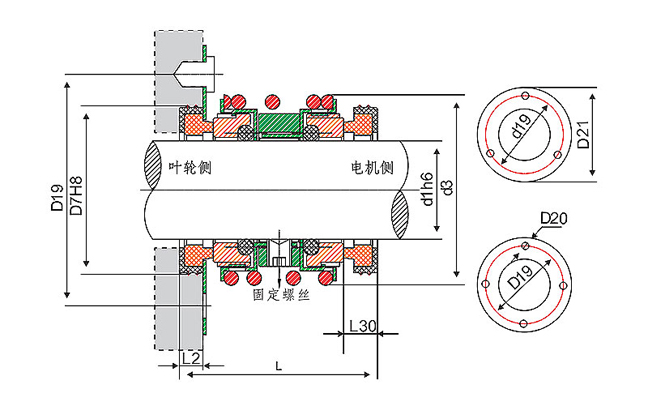

MODEL

d1

D3

D7

L

L2

L30

D19

D20

D21

TYSUU4703-18

18

39

33

40

6.0

7.8

50

M5x3

66

TYSUU4703-20

20

41

35

40

6.0

7.8

53

M5x3

71

TYSUU4703-25

25

46

40

48

6.0

7.8

58

M5x3

71

TYSUU4703-25D

25

46

41

51

6.0

7.8

58

M5x3

76

TYSUU4703-28

28

51

43

51

6.0

8.5

63

M5x3

76

TYSUU4703-30

30

51

45

51

6.0

8.5

63

M5x3

85

TYSUU4703-35

35

56

50

51

6.0

8.5

68

M5x4

35

TYSUU4703-35D

35

56

51

51

6.0

8.5

68

M5x4

90

TYSUU4703-40

40

61

58

58

8.0

11.0

73

M5x4

95

TYSUU4703-45

45

66

63

58

8.0

11.0

78

M5x6

100

TYSUU4703-50

50

71

70

66

8.5

12.0

83

M5x6

105

TYSUU4703-55

55

76

75

70

8.5

12.0

88

M5x6

110

TYSUU4703-60

60

81

80

70

9.0

12.5

93

M5x6

115

TYSUU4703-65

65

87

85

70

9.0

12.5

100

M5x6

120

TYSUU4703-70

70

92

92

85

9.0

12.5

105

M5x6

125

TYSUU4703-75

75

97

97

89

9.0

12.5

110

M5x6

D21

Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYSUU4703 Rotary replacement seal pump repair mechanical seal supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYSUU4703 Rotary replacement seal pump repair mechanical seal supplier direct from our company. OEM/ODM available.

  • +
