TYS 301 John crane mechanical seal for chemical pump OEM/ODM

Home / Products / Full wave rubber bellows / TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump
  • TYS 301 John crane mechanical seal for chemical pump

TYS 301 John crane mechanical seal for chemical pump

Operating Limits
  • Annular Seal Pressure:≤0Mpa~0.8Mpa
  • Annular Seal Temperature: -20~80°C(-30~200°C)
  • Rotation speed:≤12m/sec
  • Medium: Water, Oiland PH numerical value of waste wateris 6.5-8
  • Used in clean water pumps and circulation pumps.

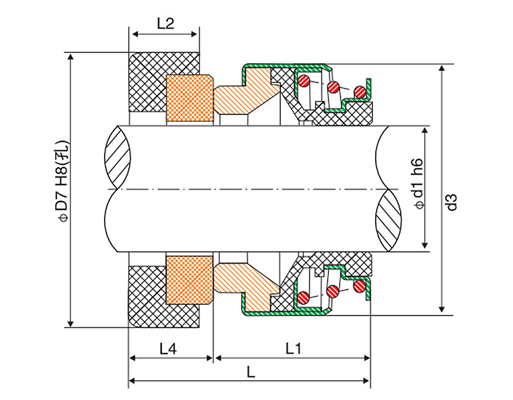

MODEL

d1

d3

D7

L

L1

L4

L2

TYS301-8

8

18.0

21.0

15.0

11.0

4.5

4

TYS301-10

10

22.0

22.0

20.0

14.0

6.0

5

TYS301-12

12

24.0

26.0

21.0

13.0

6.5

6

TYS301-13

13

24.0

26.0

18.5

13.0

5.5

5

TYS301-14X

14

26.0

26.0

21.0

13.0

6.5

6

TYS301-14d

14

32.0

29.5

21.0

13.5

7.5

6

TYS301-14

14

28.0

30.0

21.0

13.0

6.5

6

TYS301-15

15

27.5

30.0

21.0

13.0

6.5

6

. TYS301-16

16

27.5

30.0

21.0

13.0

6.5

6

TYS301-16d

16

32.0

29.5

21.0

13.5

7.5

6

TYS301-18

18

39.0

42.0

21.0

13.0

8.0

6

TYS301-20

20

42.0

45.0

23.0

13.0

10.0

8

TYS301-25

25

47.0

50.0

23.5

13.5

10.0

8

TYS301-28

28

54.0

57.0

25.0

15.0

10.0

8

TYS301-30

30

54.0

57.0

25.0

15.0

10.0

8

TYS301-17

17

32.0

36.0

25.0

17.0

8.0

6

TYS301-17DY

17

32.0

33.0

21.0

14.2

6.8

5.5

Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYS 301 John crane mechanical seal for chemical pump supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYS 301 John crane mechanical seal for chemical pump supplier direct from our company. OEM/ODM available.

  • +
