TYS 1008 Pump seal supplier bellow Mechanical Seal MG9 MG912 for water pump

Operating Limits

Annular Seal Pressure:≤OMpa~ 1.2Mpa
Annular Seal Temperature: - 20~80°C(-30~200°C)
Rotation speed:≤12m/sec
Medium: Water, Oiland PH numerical value of waste water is 6.5- -8
Used in clean water pumps,in-Line pumps and general industrial pumps
  • Stationary Ring(Ceramic/SiC/TC)
  • Rotary Ring(Carbon/SiC)
  • Secondary Seal(NBR/EPDMVITON)
  • Retainer(SUS304)
  • Spring(SUS304)
  • Spring Holder(SUS304)

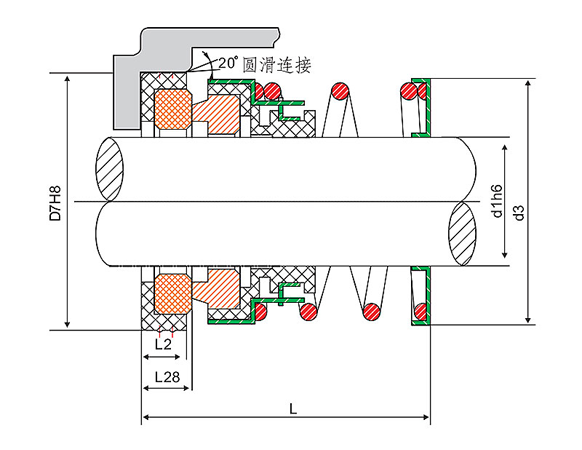

MODEL

d1

d3

D7

L

L28

L2

TYS1008-8

8

20

21

20

6

5

TYS1008-10

10

21

22

20

6

5

TYS1008- 12

12

22

26

23

6.5

6

TYS1008- 14

14

24.5

28

25

6.5

6

TYS1008-16

16

26.5

28

25

6.5

6

TYS1008-18

18

32

33

27

7.5

6

TYS1008-20

20

34

35

29

7.5

6

TYS1008- -22

22

34

37

29

7.5

6

TYS1008-25

25

39

40

31

7.5

6

TYS1008- -28

28

44

43

34

7.5

6

TYS 1008- -30

30

44

45

34

7.5

6

TYS1008-35

35

49

50

36

7.5

6

TYS1008-40

40

56

58

39

9

8

TYS1008- 45

45

61

63

39

9

8

TYS1008-50

50

67

70

40

9.5

8

TYS1008-55

55

72

75

46

11

8

TYS1 008-60

60

77

80

49

11

9

TYS1008-14d

14

24.5

26

25

6.5

6

TYS1008-17

17

32

35

27

7.5

6

Product description

Welcome to our website, your trusted destination for high-quality pump seals and mechanical seal solutions. We take pride in offering the MG9 MG912 Bellow Mechanical Seal, specifically designed to provide reliable sealing for water pumps in various applications. With its advanced features and durable construction, this mechanical seal ensures optimal performance and efficiency, making it an ideal choice for your pumping systems.
Key Features and Specifications:
Annular Seal Pressure:
The MG9 MG912 Bellow Mechanical Seal is designed to withstand pressures ranging from ≤0MPa to 1.2MPa, ensuring secure and leak-free sealing even under high-pressure conditions.
Annular Seal Temperature:
With a temperature range of -20°C to 80°C (-30°C to 200°C), this mechanical seal is suitable for a wide range of operating environments, allowing for efficient pump performance in various temperature conditions.
Rotation Speed:
The MG9 MG912 Bellow Mechanical Seal is engineered to accommodate rotation speeds of up to 12m/sec, ensuring smooth operation and preventing seal damage caused by excessive rotational forces.
Medium Compatibility:
This mechanical seal is specifically designed for use with water, oil, and wastewater with a pH numerical value ranging from 6.5 to 8. It is engineered to provide effective sealing in clean water pumps, in-line pumps, and general industrial pumps.
Stationary Ring:
The stationary ring of the MG9 MG912 Bellow Mechanical Seal is available in different materials, including ceramic, SiC (silicon carbide), or TC (tungsten carbide). These materials offer excellent wear resistance, corrosion resistance, and durability, ensuring long-lasting sealing performance.
Rotary Ring:
The rotary ring of the mechanical seal is constructed from either carbon or SiC, depending on the application requirements. Carbon provides good sliding properties, while SiC offers superior resistance to wear and chemical attack.
Secondary Seal:
The MG9 MG912 Bellow Mechanical Seal features a secondary seal made from high-quality elastomers such as NBR (nitrile rubber), EPDM (ethylene propylene diene monomer), or VITON. These materials ensure reliable sealing and compatibility with various fluids.
Retainer, Spring, and Spring Holder:
The retainer, spring, and spring holder components of the mechanical seal are constructed from SUS304 stainless steel, known for its excellent corrosion resistance and mechanical strength. These components provide stability, durability, and reliable sealing performance.
The MG9 MG912 Bellow Mechanical Seal is designed to meet the demanding requirements of water pumps, ensuring efficient and leak-free operation. Whether you are involved in water treatment, HVAC systems, or general industrial pumping, this mechanical seal is a reliable solution for maintaining the integrity of your pumping systems.
By choosing the MG9 MG912 Bellow Mechanical Seal, you can expect high-quality sealing, extended equipment life, and reduced maintenance costs. Our product is meticulously engineered and manufactured to the highest standards, ensuring exceptional performance in even the most demanding pumping applications.
Experience the reliability and efficiency of the MG9 MG912 Bellow Mechanical Seal for your water pump needs. Trust in our commitment to delivering superior quality products that meet your sealing requirements. Contact us today to discuss your specific needs and discover how our mechanical seals can enhance the performance of your pumping systems.
