TYS 303C Mechanical Seal Auto Cooling Pump Seal

Operating Limits

Annular Seal Pressure: ≤0Mpa~0.5Mpa
Annular Seal Temperature: -20~80℃(-30~200℃)
Rotation speed: ≤5m/sec
Medium: froaen resistance

●Stationary Ring(Ceramic/SiC/TC)

●Rotary Ring(Carbon/SiC)

● Secondary Seal(NBRVITON)

●Retainer(SUS304)

●Spring(SUS304)

●Spring Holder(SUS304)

Contact form

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYS 303C Mechanical Seal Auto Cooling Pump Seal supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYS 303C Mechanical Seal Auto Cooling Pump Seal supplier direct from our company. OEM/ODM available.

₊
Experience
Employees
_㎡
Plant Area
₊
Model

factory equipment

Our factory has sound facilities and full functions,
which is very suitable for mass production.

Related Products

TYS 1011 Cartridge Mechanical Seal 12mm16mm 22mm for GF CR CRN CRI pump seal

TYS 1006 Mechanical seal John crane type 2100K pump shaft seal

TYS 1008 Pump seal supplier bellow Mechanical Seal MG9 MG912 for water pump

TYS1009、MG1、MG12、MG13 Rubber bellows mechanical seal professional mechanical seal supplier

TYS58U Mechanical seals for IMO water pump

TYS 155 Single spring mechanical seals for water pump seal

TYS 301 John crane mechanical seal for chemical pump

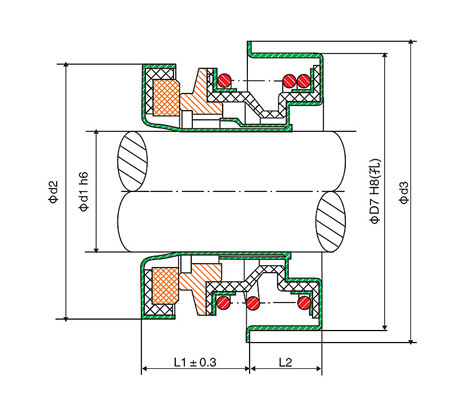

MODEL	d1	D7	d3	d2	L1	L2
TYS303C-10	10	30.0	35.0	23.5	9.7	8.0
TYS303C-12	12	28.5	35.0	25.0	9.7	8.0
TYS303C-13	13	30.0	35.0	25.0	9.7	8.0
TYS303C-15	15	36.5	41.3	28.5	11.5	8.5
TYS303C-15A	15	30.0	35.0	28.5	11.0	8.0
TYS303C-16	15.918	36.5	41.3	28.5	10.7	8.5
TYS303C-19	19	40.0	43.7	34.8	12.5	10.0
TYS303C-20	20	40.0	43.7	36.8	12.5	10.0
TYS303C-25.4	25.4	50.0	55.0	42.0	12.5	12.5
