TYS 1011 Cartridge Mechanical Seal 12mm16mm 22mm for GF CR CRN CRI pump seal

Operating Limits

Annular Seal Pressure: ≤0Mpa~1.6Mpa
Annular Seal Temperature: -20~80°C(-30~200°C)
Rotation speed:≤12m/sec
Medium: Water, Oiland PH numerical value of waste water is 6.5-8
Used in clean water pumps,in-Line pumps and general industrial pumps

  • Stationary Ring(Carbon/SiC)
  • Rotary Ring(SiC/TC)
  • Secondary Seal(NBR/VITON)
  • Retainer(SUS304/SUS316)
  • Spring(SUS304/SUS316)
  • Spring Holder(SUS304/SUS316)

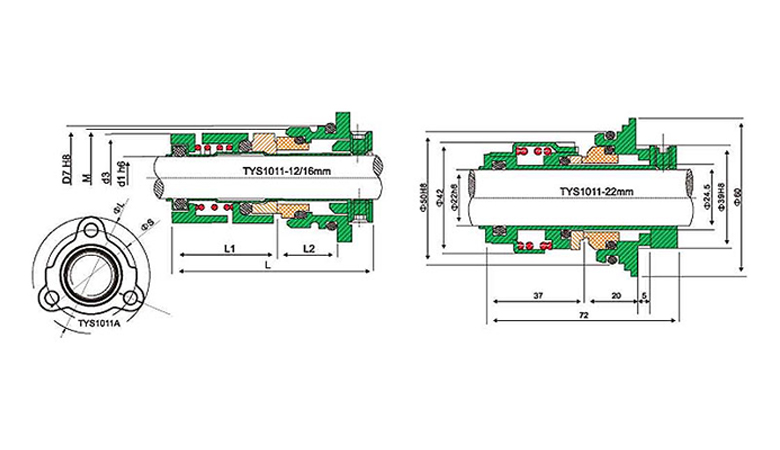

MODEL

d1

d3

M

D7

L

L2

L1

ΦS

ΦL

TYS1011-12

12

25

M28X1 .5

29

55

15

30




TYS1011-16

16

30.5

M33X1.5

34

58

15

31.5





TYS1011-22

22

47

M33X1.5

50

72

20

37.0





TYS1011 A-12

12

25



29

55

15

30

42

54

TYS1011A-16

16

30.5



34

58

15

31.5

47

60



Product description

Introducing the TYS 1011 Cartridge Mechanical Seal 12mm16mm 22mm for GF CR CRN CRI pump seal. This high-quality mechanical seal is designed for use in clean water pumps, in-line pumps, and general industrial pumps.
Annular Seal Pressure:
The TYS 1011 Cartridge Mechanical Seal can withstand pressures ranging from ≤0Mpa to 1.6Mpa.
Annular Seal Temperature:
The seal can operate in temperatures as low as -20°C and as high as 80°C (-30~200°C).
Rotation Speed:
The TYS 1011 Cartridge Mechanical Seal can handle rotation speeds of up to 12m/sec.
Medium:
This mechanical seal can be used with water, oil, and wastewater with a pH numerical value between 6.5-8.
Construction:
The TYS 1011 Cartridge Mechanical Seal has a durable construction with a stationary ring made of carbon or SiC, a rotary ring made of SiC or TC, and a secondary seal made of NBR or VITON. The retainer, spring, and spring holder are all made of SUS304 or SUS316 stainless steel.
This high-quality mechanical seal is ideal for use in a variety of applications and is suitable for wholesalers, dealers, and distributors. With its durable construction and reliable performance, the TYS 1011 Cartridge Mechanical Seal is the perfect choice for your pumping needs.
