TYS1001-Series mechanical seal OEM/ODM

Home / Products / O-ring / TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal
  • TYS1001-Series mechanical seal

TYS1001-Series mechanical seal

Operating Limits

Annular Seal Pressure:≤0Mpa~1.2Mpa
Annular Seal Temperature: -20~80℃(-30~200℃)
otation speed: ≤12m/sec
Medium: Water, Oiland PH numerical value of waste water is 6.5-8
Used in Sewage pumps,in-Line pumps and general industrial pumps

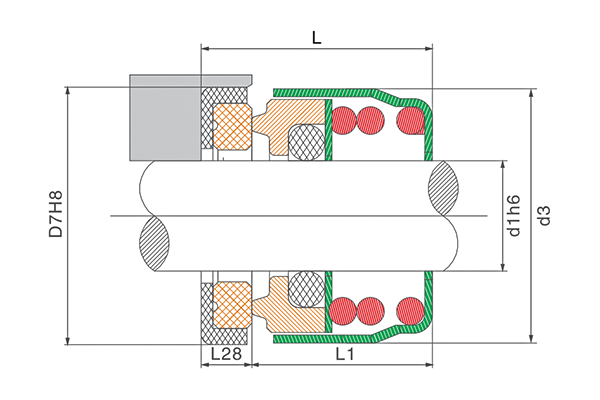

MODEL

d1

d3

D7

L

L1

L28

TYS 1001-12

12

24.5

26

21.5

15

6.5

TYS 1001-14

14

26

28

23.5

17

6.5

TYS 1001-16

16

28

30

23.5

17

6.5

TYS 1001-18

18

33

33

27

19.5

7.5

TYS 1001-20

20

36

35

29

21.5

7.5

TYS 1001-25

25

42

40

31

23.5

7.5

TYS 1001-30

30

46

45

34

26.5

7.5

TYS1001-35

35

53

50

36

28.5

7.5

TYS 1001-40

40

60

58

39

30

9.0

TYS 1001-45

45

65

63

39

30

9.0

TYS 1001-50

50

71

70

40

30.5

9.5

TYS 1001-55

55

76

75

46

35

11.0

TYS 1001-60

60

82

80

49

38

11

TYS 1001-65

65

87

85

51

40

11

TYS 1001-70

70

93

92

51.5

40

11.5

TYS 1001-75

75

99

97

51.5

40

11.5

TYS 1001-80

80

108

105

52

40

12.0
