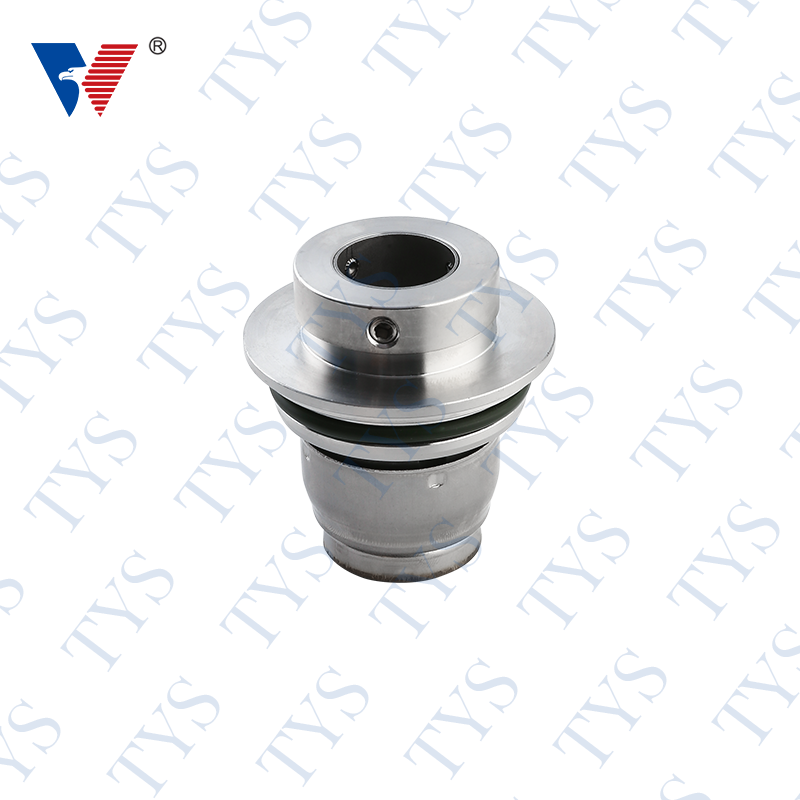

TYS 1011T HQQE mechanical seal for CR CR/CRN/CRI pump

Operating Limits

Annular Seal Pressure: ≤0Mpa~1.6Mpa
Annular Seal Temperature: -20~80°C(-30~200°C)
Rotation speed:≤12m/sec
Medium: Water, Oiland PH numerical value of waste water is 6.5-8
Used in clean water pumps,in-Line pumps and general industrial pumps

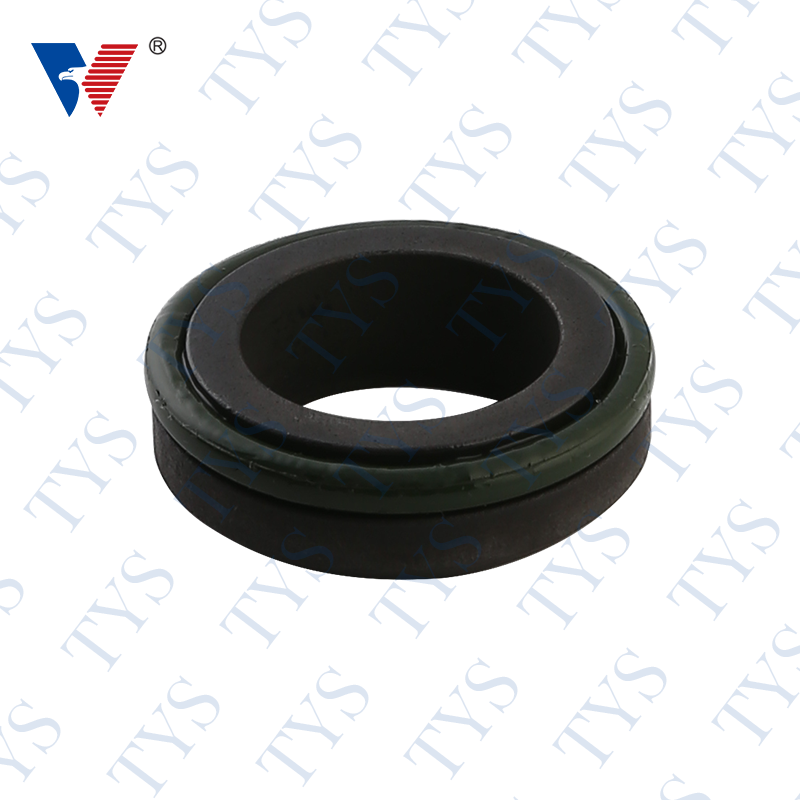

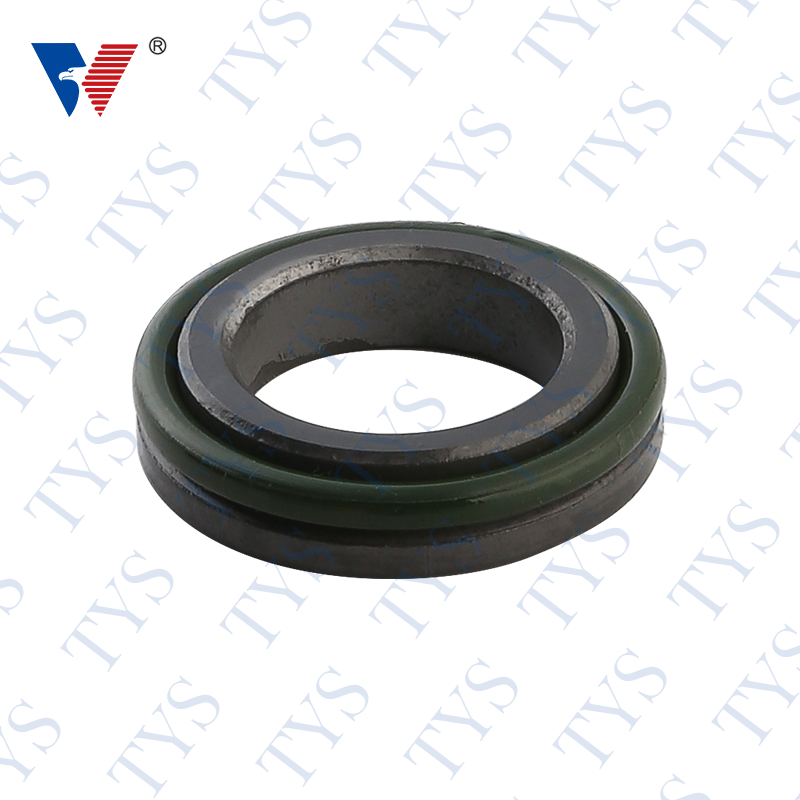

  • Stationary Ring(Carbon/SiC)

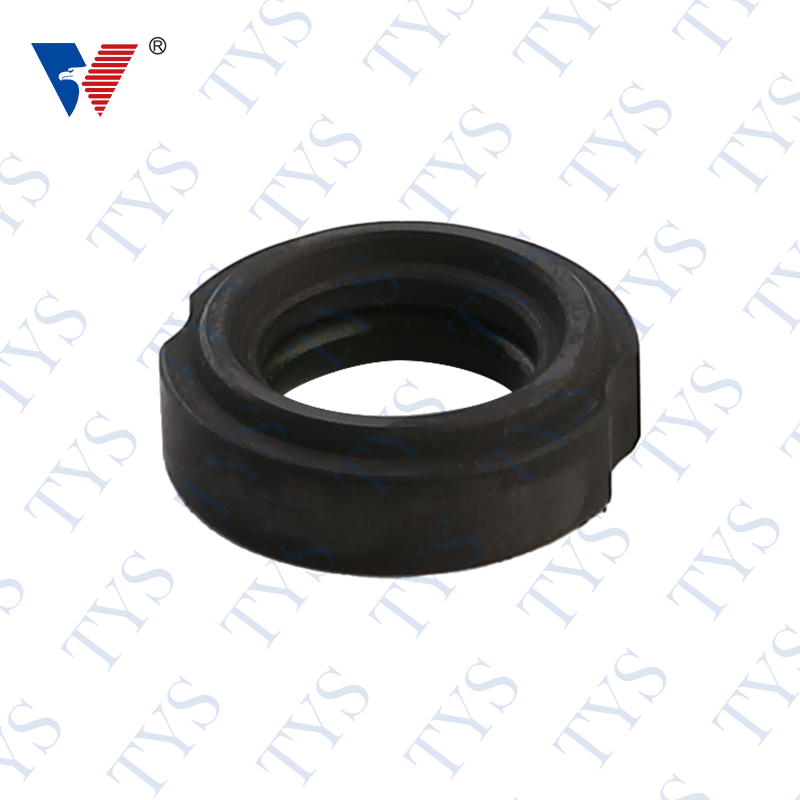

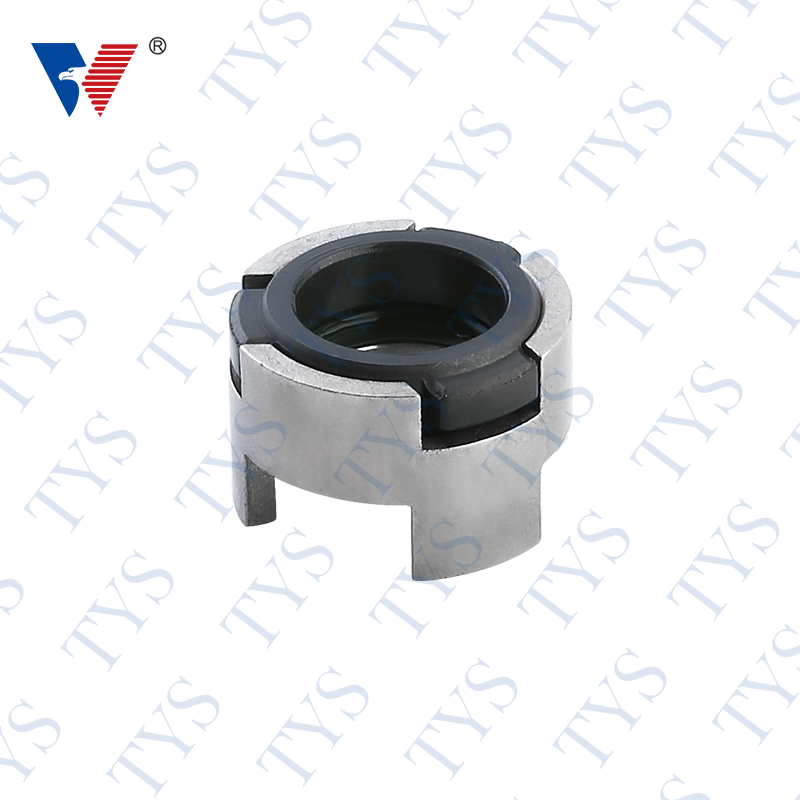

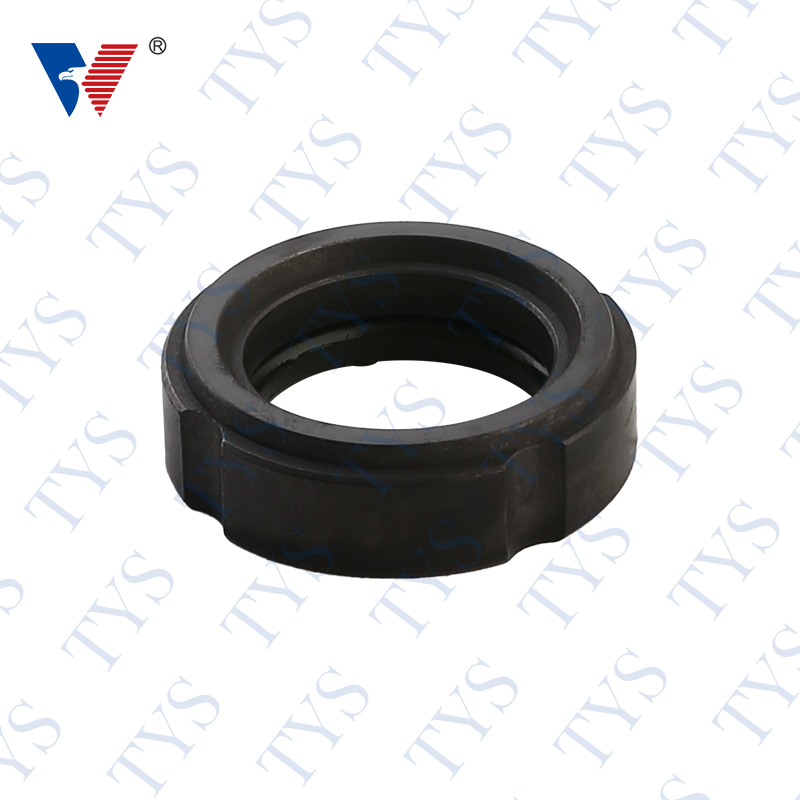

  • Rotary Ring(SiC/TC)
  • Secondary Seal(NBR/VITON)
  • Retainer(SUS304/SUS316)

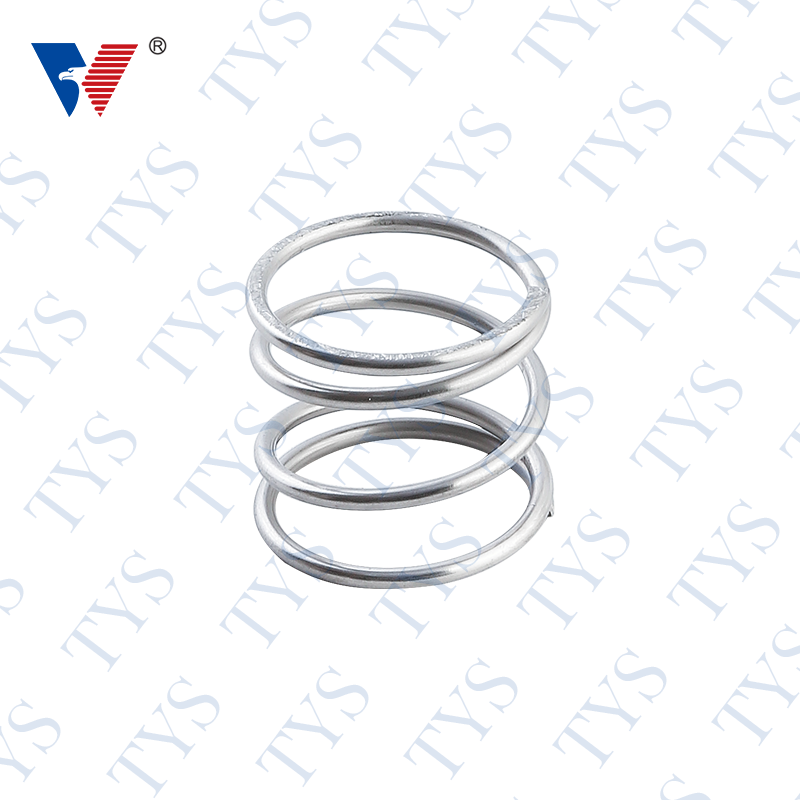

  • Spring(SUS304/SUS316)
  • Spring Holder(SUS304/SUS316)

MODEL

d1

d3

M

D7

L

L2

L1

ΦS

ΦL

TYS1011-12

12

25

M28X1 .5

29

55

15

30




TYS1011-16

16

30.5

M33X1.5

34

58

15

31.5





TYS1011-22

22

47

M33X1.5

50

72

20

37.0





TYS1011 A-12

12

25



29

55

15

30

42

54

TYS1011A-16

16

30.5



34

58

15

31.5

47

60



Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYS 1011T HQQE mechanical seal for CR CR/CRN/CRI pump supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYS 1011T HQQE mechanical seal for CR CR/CRN/CRI pump supplier direct from our company. OEM/ODM available.

  • +
