TYS1010 TYS1070 Elastomer Bellow John Crane Type 2 Mechanical Seal water pump

Operating Limits

Annular Seal Pressure: ≤OMpa~ 1.2Mpa
Annular Seal Temperature: -20~80°C(-30~200°C)
Rotation speed:≤ 12m/sec
Medium: Water, Oiland PH numerical value of waste water is 6.5-8
Used in clean water pumps,in-Line pumps and general industrial pumps

Mechanical Seals
Single Face
Single Spring
Unbalanced Seal
Arbitrary Rotation
  • Stationary Ring(Ceramic/SiC/TC)
  • Rotary Ring(Carbon/SiC)
  • Secondary Seal(NBR/EPDM)
  • Retainer(SUS304)
  • Spring(SUS304)
  • Spring Holder(SUS304)

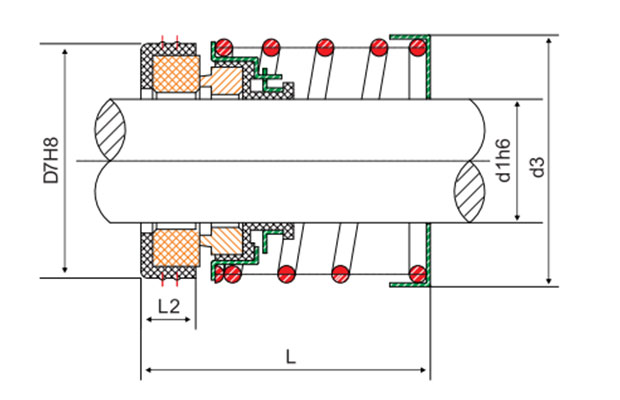

MODEL

d1

d3

D7

L

L2

TYS1070-14

14

29

28

25

5

TYS1070-16

16

31.5

29.5

25

6

TYS1070-16D

16

31.5

30

25

6

TYS1070-18

18

36

33

27

6

TYS1070-20

20

37

35

29

6

TYS1070-22

22

37

37

29

6

TYS1070-25

25

43

40

31

6

TYS1070-28

28

49

43

34

6

TYS1070-30

30

49

46

34

6

TYS1070-35

35

54.5

50

36

6

TYS1070-40

40

62.5

58

39

8

TYS1070-16DY

16

31.5

28

24

6

TYS1070-30DY

30

49

46

35

6.6

Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYS1010 TYS1070 Elastomer Bellow John Crane Type 2 Mechanical Seal water pump supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYS1010 TYS1070 Elastomer Bellow John Crane Type 2 Mechanical Seal water pump supplier direct from our company. OEM/ODM available.

  • +

    Experience

  • Employees

  • ㎡

    Plant Area

  • +

    Model

MORE
factory equipment

Our factory has sound facilities and full functions,
which is very suitable for mass production.
