TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal OEM/ODM

Home / Products / Half wave rubber bellows type / TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal
  • TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal
  • TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal
  • TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal
  • TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal
  • TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal
  • TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal
  • TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal

TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal

Operating Limits
  • Annular Seal Pressure:≤0~0.8Mpa
  • Annular Seal Temperature: -20~80°C( -30~200°C)
  • Rotation speed:≤12m/sec
  • Medium: Water, Oiland PH numerical value of waste water is 6.5-8
  • Used in clean water pumps,in-Line pumps and general industrial pumps

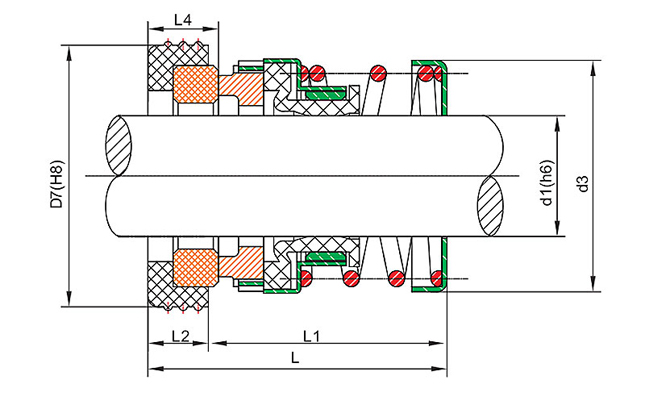

MODEL

d1

d3

D7

L

L1

L4

L2

TYS560- 12

12

26.0

26

24.0

17.5

6.5

6

TYS560-14

14

28.0

28

25.0

18.0

7.0

6

TYS560-15

15

28.0

28

25.0.

18.0

7.0

6

TYS560-16

16

30.0

32

27.0

20.0

8.0

6

TYS560-18

18

32.5

35

27.0

19.0

8.0

6

TYS560-19

19

32.5

35

27.0

18.0

8.0

6

TYS560-20

20

35.5

38

28.0

19.5

8.0

6

TYS560-22

22

37.5

40

28.0

20.0

8.0

6

TYS560-25

25

42.0

44

29.0

20.0

9.0

7

TYS560-28

28

45.5

46

30.0

21.0

9.0

7

TYS560-30

30

48.0

50

31.0

22.0

9.0

7

TYS560-32

32

50.0

54

33.0

24.0

9.0

7

TYS560-35

35

54.5

58

36.0

26.0

10

8

TYS560-38

38

58.5

60

37.0

27.0

10

8

TYS560-40

40

62.5

64

38.0

28.0

10

8

TYS560-45

45

66.5

66

40.0

30.0

10

8

TYS560-50

50

72.5

72

42.0

32.0

10

8

Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYS 1007/560/P21 O ring mechanical seal john crane type 1 mechanical seal supplier direct from our company. OEM/ODM available.

  • +
