TYS 1002 Pump seal supplier bellow Mechanical Sealfor water pump OEM/ODM

Home / Products / Half wave rubber bellows type / TYS 1002 Pump seal supplier bellow Mechanical Sealfor water pump
  • TYS 1002 Pump seal supplier bellow Mechanical Sealfor water pump

TYS 1002 Pump seal supplier bellow Mechanical Sealfor water pump

Operating Limits

Annular Seal Pressure: ≤0Mpa~1.2Mpa
Annular Seal Temperature: -20~80°C(-30~200°C)
Rotation speed:≤12m/sec
Medium: Water, Oiland PH numerical value of waste wateris 6.5-8
Used in clean water pumps,in-Line pumps and general industrial pumps
  • Stationary Ring(SiC/TC)
  • Rotary Ring(Carbon/SiC)
  • Secondary Seal(NBR/EPDM)
  • Retainer(SUS304)
  • Spring(SUS304)
  • Spring Holder(SUS304)

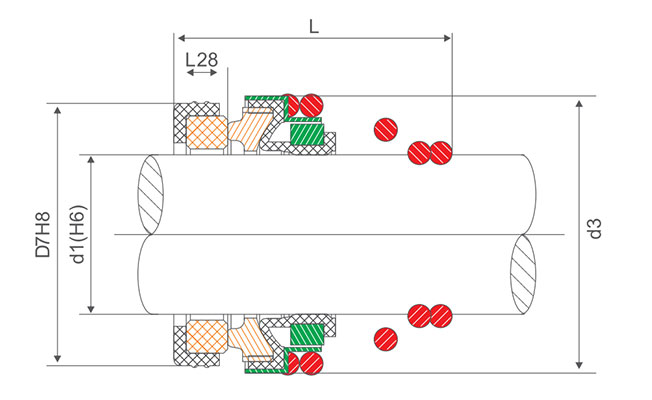

MODEL d1 d3 D7 L L28
TYS 1002-12 12 25 23 23 6.5
TYS 1002-14 14 30 25 25 6.5
TYS 1002-15 15 30 25 25 6.5
TYS 1002-16 16 30 27 25 6.5
TYS 1002-18 18 32 33 27 6.5
TYS 1002-19 19 34 35 27 7.5
TYS 1002-20 20 34 35 29 7.5
TYS 1002-19WX 19.05 34 32.6 25 7.5
TYS 1002-22 22 34 37 29 7.5



MODEL d1 d3 D7 L L28
TYS1002-25 25 39 40 31 7.5
TYS1002-28 28 44 43 34 7.5
TYS1002-30 30 44 45 34 7.5
TYS1002-35 35 49 50 36 7.5
TYS1002-40 40 56 58 39 9
TYS1002-45 45 61 63 39 9
TYS1002-50 50 67 70 40 9.5
TYS1002-55 55 72 75 46 11
TYS1002-65 65 77 80 49 11

Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYS 1002 Pump seal supplier bellow Mechanical Sealfor water pump supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYS 1002 Pump seal supplier bellow Mechanical Sealfor water pump supplier direct from our company. OEM/ODM available.

  • +

    Experience

  • Employees

  • ㎡

    Plant Area

  • +

    Model

MORE
factory equipment

Our factory has sound facilities and full functions,
which is very suitable for mass production.
