TYSUU 4712 Southern pump mechanical seal CHL-16/20 mechanical seal for CNP pumps OEM/ODM

Home / Products / Car parts / TYSUU 4712 Southern pump mechanical seal CHL-16/20 mechanical seal for CNP pumps
  • TYSUU 4712 Southern pump mechanical seal CHL-16/20 mechanical seal for CNP pumps

TYSUU 4712 Southern pump mechanical seal CHL-16/20 mechanical seal for CNP pumps

Operating Limits

Sealing chamber pressure: ≤0Mpa~2Mpa
Seal cavity temperature: -20~80°C(-30~200°C)
Linear speed: ≤12m/sec
Medium: water, oil and sewage with PH value of 6.5-8
Uses: clean water pumps, sewage pumps, submersible pumps, chemical pumps and other equipment, used to transport oil,
Water and weak corrosive solutions.

Double Face Mechanical Seals
  • Double Face
  • Single Spring
  • Unbalanced Seal
  • Rubber Bellows
Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Carbon/SiC)
Secondary Seal(NBR/NITON)
Retainer(SUS304/SUS316)
Spring(SUS304/SUS316)
Spring Holder(SUS304/SUS316)

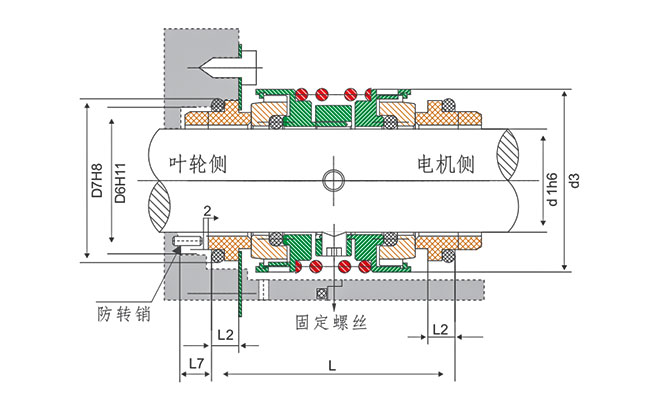

MODEL d1 d3 D6 D7 L L2 L7
SUU 4712-20 20 41 30 35 61 7 9
SUU 4712-22 22 46 32 37 61 7 9
SUU 4712-24 24 46 34 40 61 7 9
SUU 4712-25 25 46 34 40 61 7 9
SUU 4712-28 28 51 37 43 62 7.5 9
SUU 4712-30 30 51 39 45 62 7.5 9
SUU 4712-32 32 56 40 48 62 7.5 9
SUU 4712-35 35 56 43 50 62 7.5 9
SUU 4712-40 40 61 51 58 70 8.5 9
SUU 4712-45 45 66 56 63 70 8.5 9
SUU 4712-50 50 71 62 70 73 9.5 9
SUU 4712-55 55 76 67 75 73 9.5 9
SUU 4712-60 60 81 72 80 85 11 9
SUU 4712-65 65 87 77 85 85 11 9
SUU 4712-70 70 92 83 92 92 12 9
SUU 4712-75 75 97 88 97 92 12 9
SUU 4712-80 80 104 95.2 105 92.5 13 9
SUU 4712-85 85 109 100.5 110 92.5 13 9
SUU 4712-90 90 114 105 115 92.5 13 9
SUU 4712-95 95 119 110.5 120 90 13 9
SUU 4712-100 100 124 115.5 125 90 13 9
SUU 4712-110 110 138 128.5 140 110 20 9
SUU 4712-120 120 153 138.5 150 110 20 9
SUU 4712-130 130 163 146.5 158.3 110 20 9
SUU 4712-140 140 173 156.5 168.3 110 20 9
SUU 4712-150 150 183 168.5 180.3 114 22 9
SUU 4712-160 160 196 178.5 190.3 127 24 9

Product description

ABOUT

Zhejiang Tianying Mechanical Seals Co., Ltd. is TYSUU 4712 Southern pump mechanical seal CHL-16/20 mechanical seal for CNP pumps supplier and manufacturer in China, factory covering an area of ??22,000 square meters and employing 250 people. After nearly 30 years of unremitting efforts and development, 84 series and more than 1000 types of medium mechanical seals have been developed. Wholesale TYSUU 4712 Southern pump mechanical seal CHL-16/20 mechanical seal for CNP pumps supplier direct from our company. OEM/ODM available.

  • +
