Types of Rubber Bellows Seals

A Rubber Bellows Mechanical Seal is one of the most common types of sealing. It consists of a bellows element that eliminates the need for a secondary dynamic seal. This type of seal also has a static secondary seal that stays on a shaft, sleeve, or pump gland. It is widely used in industrial applications where high pressure and temperatures are common. The condensed design of this type of seal makes it easy to mount and dismount.

Another common application is as a protective seal. These boots are also used in hydraulic and pneumatic cylinders. They are also found in construction equipment and agricultural machinery. These boots are made from rubber to provide high-quality sealing and are often used in hydraulic and pneumatic cylinders. They can also be used as a flexible connector. The uses of rubber bellows depend on their manufacturing process, but they are usually found in construction and machine building.

A rubber bellows Mechanical Seal is highly versatile, with many different applications. Its versatility makes it useful for many industrial and automotive projects. As a mechanical seal, it can be expanded without compromising its integrity. In addition to sealing various types of materials, it can also absorb mechanical noise and reduce vibration between mating parts. It is also capable of accommodating slight misalignment of two components. For this reason, it is essential to properly understand how bellows work before choosing the right one for your application.

The R-2100 Bellows Seal is an excellent example of a bellows mechanical seal. This type of seal has one central spring and an elastomer bellows. It is an excellent choice for a variety of industries and has many advantages, including improved abrasion resistance and higher pressure limits. Additionally, these bellows seals are also self-cleaning, making them suitable for sterile environments.

The BSIV(tm) range of single cartridge mechanical seals offers a high-quality, value-for-money seal. It is available in a variety of seal face and elastomer combinations. The BSFG(tm) cartridge seal eliminates expensive exotic elastomer compounds. A variety of options is available to meet your specific needs. In addition to standard bellows, BSIV(tm) rubber bellows mechanical seals also feature a self-aligning stationery.

The mechanical seal eliminates the disadvantages of the metal bellows mechanical seals by containing no metal in its construction. It also features a PTFE or graphite packing seal face to avoid excessive wear and tear on the shaft. It also has low maintenance and can be installed without modification. This type of seal also has advantages over outboard bellows mechanical seals, including a longer service life and reduced leakage.

A single-acting seal is more economical than a double-acting one. Single-acting seals have been used in many industrial applications, including refuse incinerators and diverse lacquering lines. The aggressive media mixtures used in these processes can put extreme pressure on the seal. They have the flexibility to adapt to such environments and maintain a good seal quality. These applications have led to the development of special materials to be used in complex, high-tech mechanical seals.

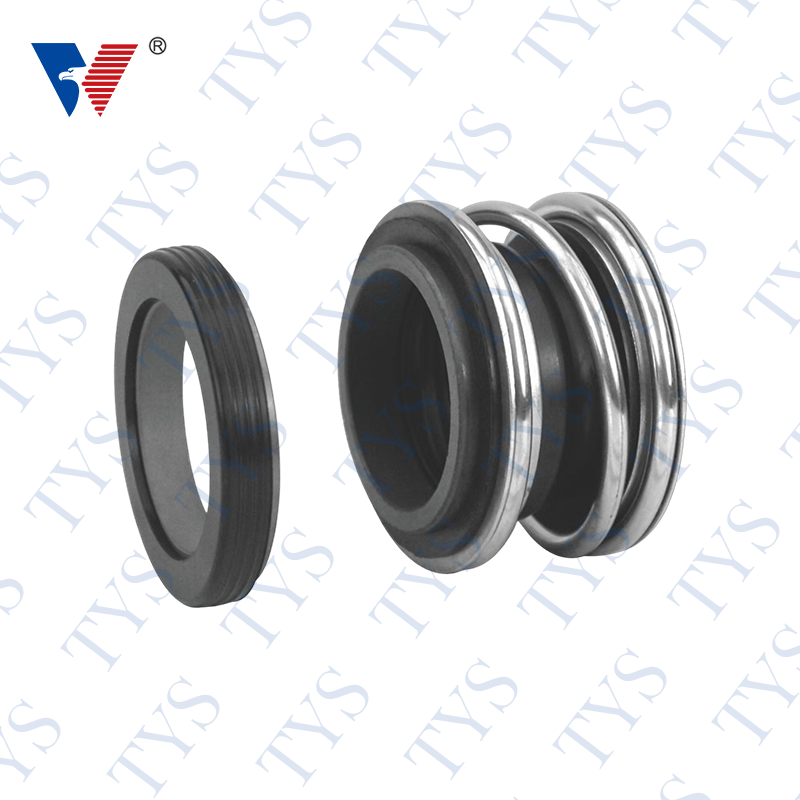

TYS1009、MG1、MG12、MG13 Rubber bellows mechanical seal professional mechanical seal supplier
Annular Seal Pressure: ≤0Mpa~1.2Mpa
Annular Seal Temperature: -20~80℃(-30~200℃)
Rotation speed: ≤12m/sec
Medium: Water, Oiland PH numerical value of waste wateris 6.5-8
Used in clean water pumps,in-Line pumps and general industrial pumps

Mechanical Seals
Single Face
Single Spring
Unbalanced Seal
Arbitrary Rotation

Stationary Ring(Ceramic/SiC/TC)
Rotary Ring(Carbon/SiC)
Secondary Seal(NBR/EPDM/VITON)
Retainer(SUS304)
Spring(SUS304)
Spring Holder(SUS304)

MODEL	d1	d3	D7	L	L28	MG1	MG12	MG13
TYS1009-12	12	25	26	21.5	6.5	/	/	/
TYS1009-14	14	28.5	28	23.5	6.5	/	/	/
TYS1009-16	16	28.5	27	23.5	6.5	17.0	28.5	33.5
TYS1009-18	18	32	33	27	6.5	19.5	30.0	37.5
TYS1009-20	20	37	35	29	6.5	21.5	30.0	37.5
TYS1009-22	22	37	37	29	7.5	21.5	30.0	37.5
TYS1009-25	25	42.5	40	31	7.5	23.0	32.5	42.5
TYS1009-28	28	49	43	34	7.5	26.5	35.0	42.5
TYS1009-30	30	49	45	34	7.5	26.5	35.0	42.5.
TYS1009-35	35	57	50	36	9	28.5	35.0	47.5
TYS1009-40	40	62	58	36	9	30.0	36.0	46.0
TYS1009-45	45	68	63	39	9.5	30.0	36.0	51.0
TYS1009-50	50	74	70	39	11	30.0	38.0	50.5.
TYS1009-55	55	81	75	46	11	35.0	36.5	59.0
TYS1009-60	60	85.5	80	49	11	38.0	41.5	59.0
TYS1009-65	65	93.5	85	51	11.3	40.0	41.5	69.0
TYS1009-70	70	99.5	92	51.5	11.3	40.0	48.7	68.7
TYS1009-75	75	107	97	51.5	12	40.0	48.7	68.7
TYS1009-80	80	112	105	52	14	40.0	48.0	78.0.
TYS1009-85	85	120	110	55	14	41.0	46.0	76.0
TYS1009-90	90	127	115	59	14	45.0	51.0	76.0
TYS1009-95	95	132	120	60	14	46.0	51.0	76.0
TYS1009-100	100	137	125	61	14	47.0	51.0	76.0.
TYS1009-12B	12	25	23	21.5	6.5	15.0	26.0	33.5
TYS1009-14B	14	28.5	25	23.5	6.5	17.0	28.5	33.5
